PRODUCT DESCRIPTION
Overview
The Boyard JVSB150Z24 1A is a hermetic DC variable-speed rotary compressor designed for 24V battery-powered refrigeration and air conditioning systems. Originally developed for parking/auxiliary A/C on commercial vehicles, it is well-suited for any application requiring compact, efficient vapor-compression cooling from a 24VDC bus — including off-grid thermal management systems, mobile climate control, and custom heat pump assemblies.
Kippkitts supplies this compressor as part of a 1 kW air-to-air heat pump assembly and offers it here as a standalone OEM component for integrators building their own refrigeration circuits.
Key Specifications

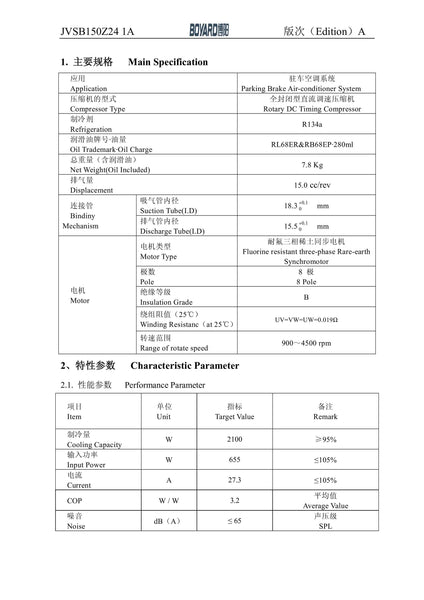

| Parameter | Value |
|---|---|
| Manufacturer | Zhejiang Boyang Compressor Co., Ltd |
| Model | JVSB150Z24 1A |
| Compressor Type | Hermetic rotary, DC variable speed (inverter-driven) |
| Refrigerant | R134a |
| Displacement | 15.0 cc/rev |
| Speed Range | 900 – 4,500 RPM |
| Supply Voltage | 24 VDC |
| Rated Input Power | 655 W |
| Rated Cooling Capacity | 2,100 W |
| Rated COP | 3.2 W/W |
| Rated Current | 27.3 A |
| Net Weight (with oil) | 7.8 kg |
| Lubricant | RL68ER / RB68EP, 280 mL |

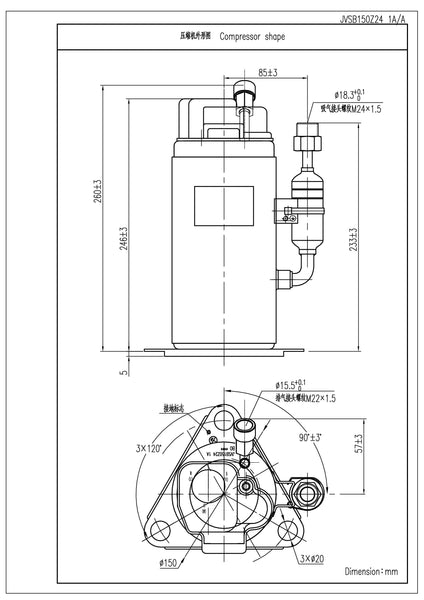

| Suction Port I.D. | 18.3 mm |
| Discharge Port I.D. | 15.5 mm |

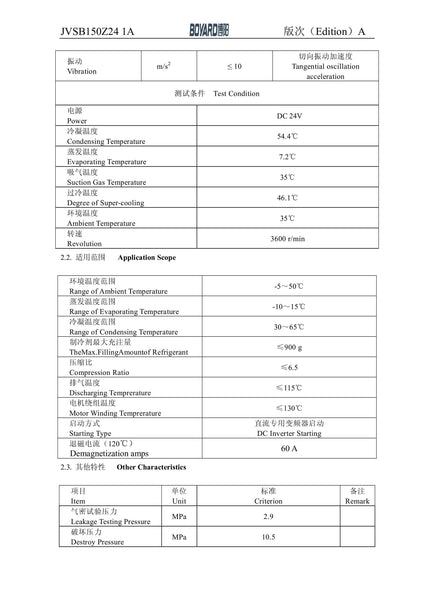

Performance Test Conditions
The rated performance above is measured at the following AHRI-style conditions:
| Condition | Value |
|---|---|
| Condensing Temperature | 54.4°C |
| Evaporating Temperature | 7.2°C |
| Suction Gas Temperature | 35°C |
| Subcooling | 46.1°C |
| Ambient Temperature | 35°C |
| Speed | 3,600 RPM |
Operating Envelope
| Parameter | Range |
|---|---|
| Ambient Temperature | −5°C to +50°C |
| Evaporating Temperature | −10°C to +15°C |
| Condensing Temperature | +30°C to +65°C |
| Max Refrigerant Charge | 900 g |
| Max Compression Ratio | 6.5 |
| Max Discharge Temperature | 115°C |
| Max Motor Winding Temperature | 130°C |
Motor Details

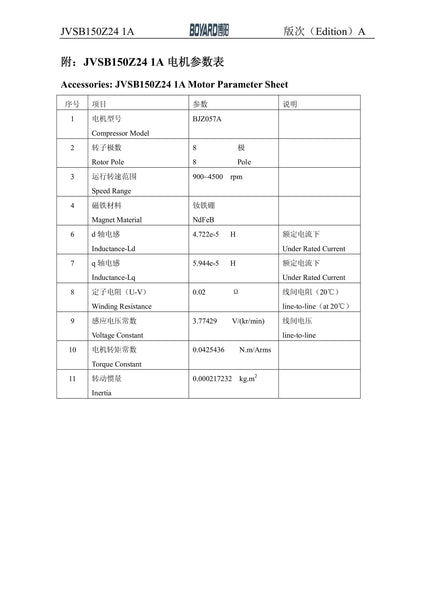

The integrated BLDC motor (model BJZ057A) is a fluorine-resistant, 3-phase, 8-pole rare-earth (NdFeB) synchronous machine. Key motor parameters for inverter tuning:
| Parameter | Value |
|---|---|
| Winding Resistance (U–V, 20°C) | 0.020 Ω |
| d-axis Inductance (Ld) | 47.22 µH |
| q-axis Inductance (Lq) | 59.44 µH |
| Back-EMF Voltage Constant | 3.774 V/(krpm), line-to-line |
| Torque Constant | 0.04254 N·m/Arms |
| Rotor Inertia | 2.172 × 10⁻⁴ kg·m² |
| Insulation Grade | Class B |
| Demagnetization Current Limit (120°C) | 60 A |
Drive Requirements
This compressor requires a dedicated 24VDC BLDC inverter for operation — it cannot be run from a simple on/off relay or AC power source. The inverter must implement field-oriented control (FOC) or similar PMSM control strategy matched to the motor parameters above. Boyard and compatible third-party inverter drives are available; contact us for drive pairing recommendations.
Integration Notes
- Refrigerant: R134a only. Not compatible with R290, R32, or HFO blends without requalification.
- Oil: Pre-charged with polyol ester oil (RL68ER/RB68EP). Do not mix oil types.

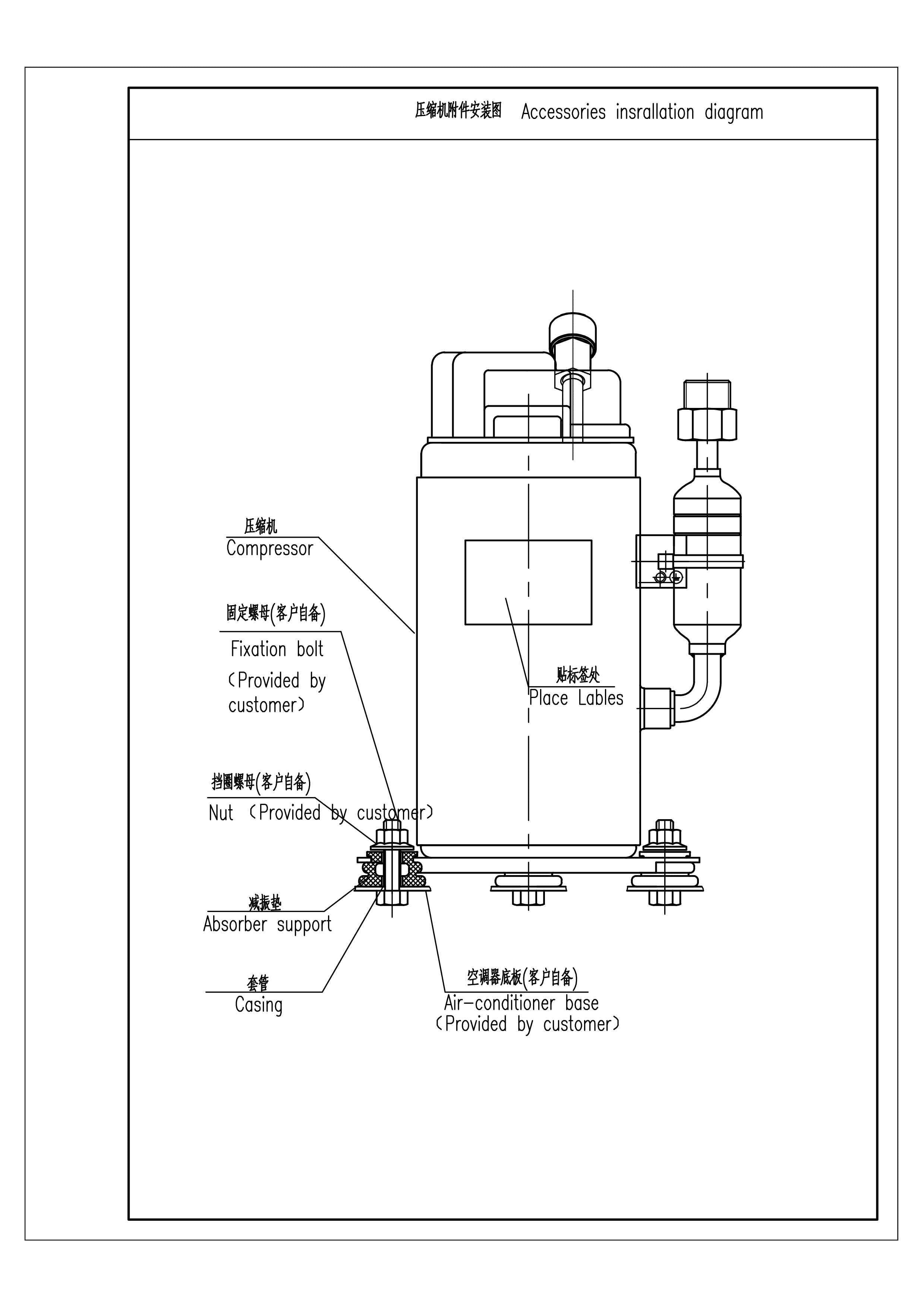

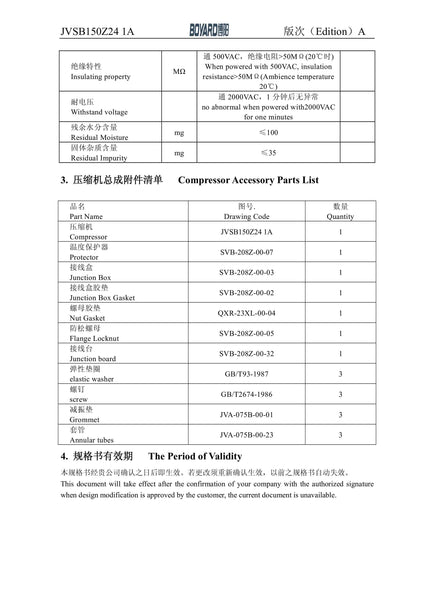

- Mounting: Three-point vibration-isolated mount using included grommets and sleeves.
- Starting: DC inverter soft-start required; the compressor includes a thermal protector and junction box in the accessory kit.
- Pressure ratings: Leak test at 2.9 MPa; burst pressure 10.5 MPa.
- Electrical safety: Insulation resistance >50 MΩ at 500 VAC; withstands 2000 VAC for 1 minute.
